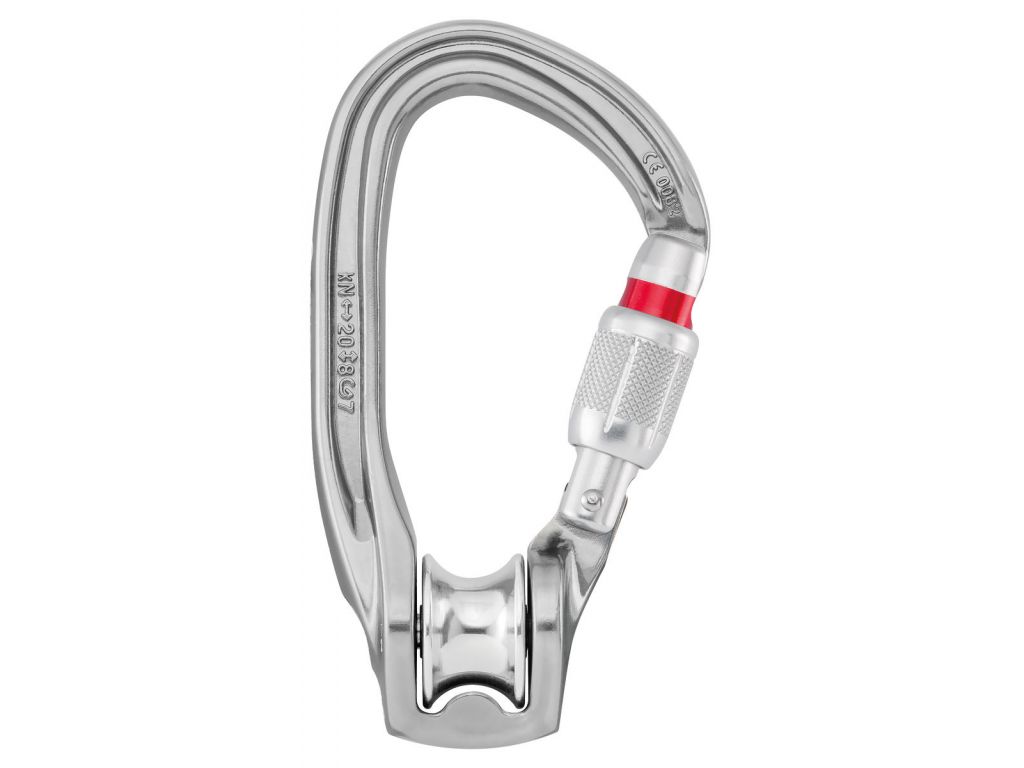

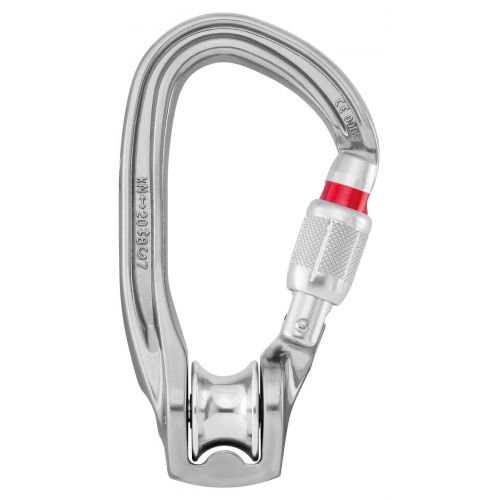

ROLLCLIP Z is a pulley-carabiner with a gate opening on the non-pulley side to facilitate installation on anchors and devices.
Easier handling:
- sheave mounted on sealed ball bearings for excellent efficiency
- gate opening on the non-pulley side, to facilitate installation on devices
- Keylock system prevents any accidental snagging of the carabiner when putting the pulley in place
H cross-section of carabiner:
- ensures an improved strength-to-weight ratio
- protects markings from abrasion
Two locking systems available:
- TRIACT-LOCK: automatic locking with triple-action gate opening
- SCREW-LOCK: the manual screw-lock with red band provides a visual warning when the carabiner is unlocked
Specifications
Material(s): aluminum
Sheave diameter: 18 mm
Major axis strength: 20 kN
Minor axis strength: 8 kN
Open gate strength: 7 kN
Certification(s): CE EN 362, EN 12278, EAC
Specification | |
---|---|
Application | Work |
Sheaves | One; 18 mm |
Rope diameter | Min. rope diameter: 7 mm Max. rope diameter: 13 mm |
Efficiency | 85 % |
Max. working load | 2 x 2 = 4 kN |
Sheave type | Bearings |
Sheave material | Aluminium |
