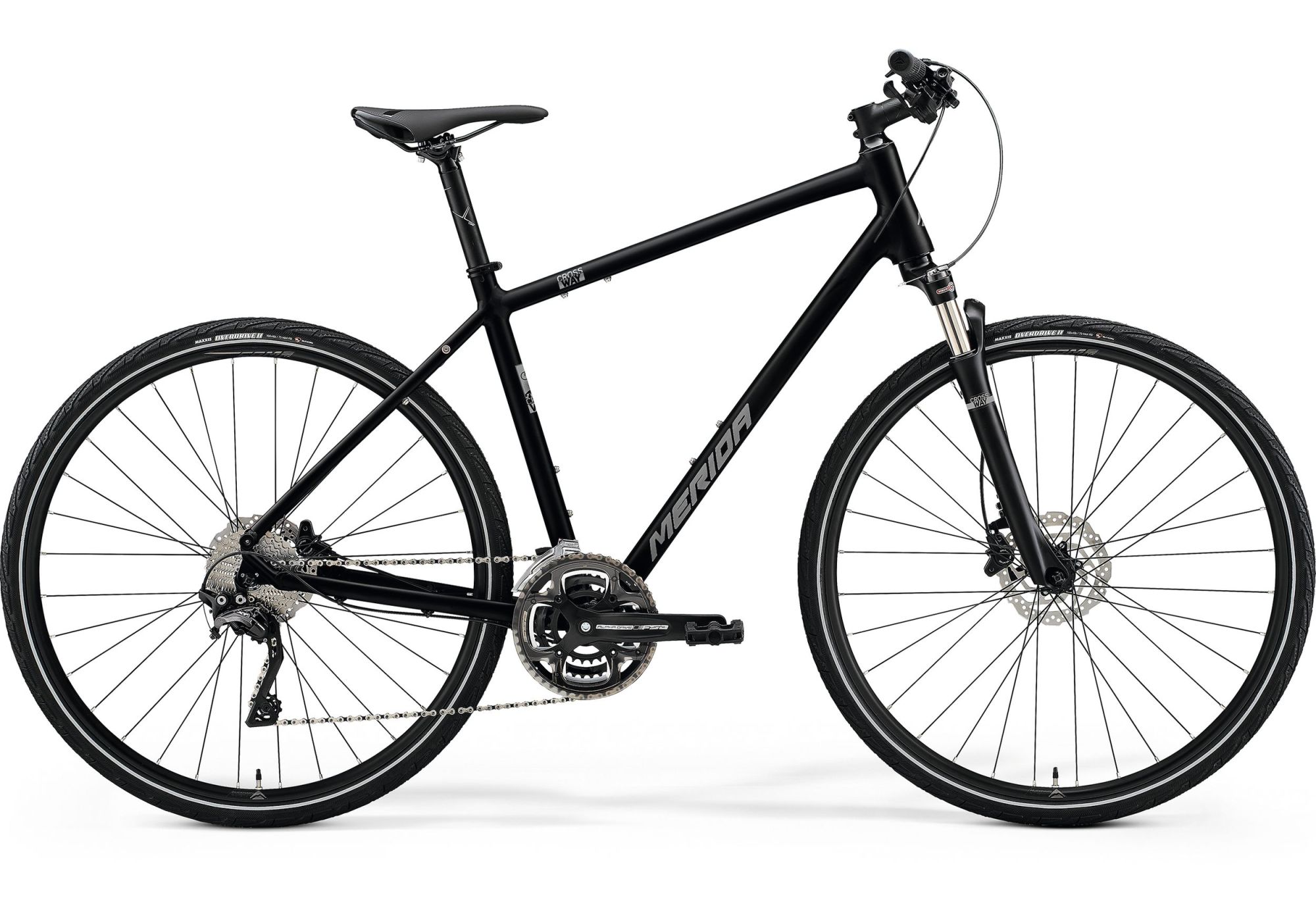

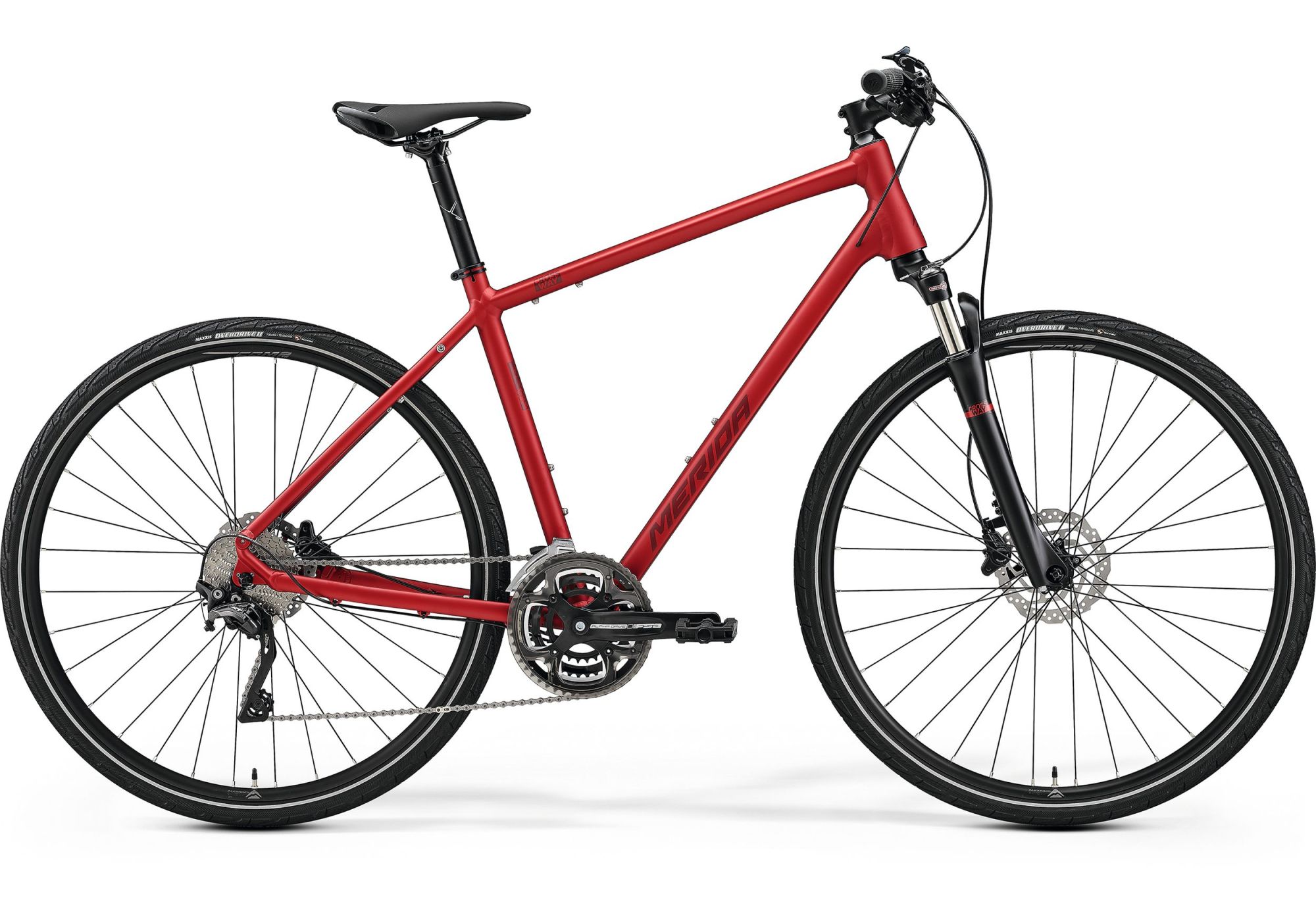

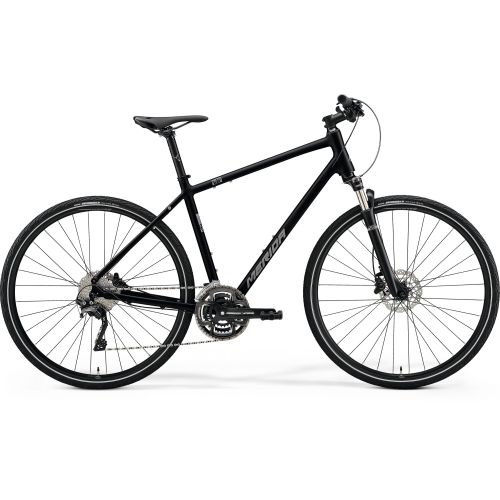

Whether you are looking for a top equipped companion for your daily commute, a comfortable yet speedy bike for your weekend adventures, or a versatile touring machine, the CROSSWAY 500 delivers precisely that. Equipped with a high-quality drivetrain, lockable suspension fork, powerful disc brakes and a wide range of gears, the CROSSWAY will get you to work quickly as well as tackle some more demanding hills with ease.
The CROSSWAY family has been the MERIDA range's backbone since its introduction. They are used worldwide and are proven as a reliable, versatile and fun-packed way of getting around. Designed to provide a comfortable place to take in the surroundings thanks to an upright riding position and comfort focused equipment such as suspension fork, suspension seat posts and adjustable stems, they offer the perfect blend of comfort, enjoyment and all-round functionality. They are suitable for fitness training, commuting and leisurely rides through forests and on trails. Made from high-quality, lightweight aluminium with the ability to mount mudguards, racks and kickstands, the CROSSWAY range is the perfect choice for everyday riding. The fitted 700c wheels cover ground quickly, while the extra volume of the 40 mm wide tyres offers puncture protection, grip and comfort. All CROSSWAY models are available as a low step-through frame, making mounting and dismounting straightforward.
Lightweight aluminium frame
Comfort geometry
Lockable suspension fork
Shimano hydraulic disc brakes
Shimano XT/FSA drivetrain
Multiple fixing points for rear rack and fenders
Specification | |
---|---|
Handlebars | MERIDA COMP CC Aluminium 660mm width 25mm rise |
Permitted max. weight | 120 kg |
Cassette | Shimano HG500 11-34 teeth 10 speed |
Tyres | Maxxis Overdrive II 700x40C fold reflective stripe, Silkworm |
Spokes | Black stainless |
Shift levers | Shimano Deore |
Seatpost | MERIDA COMP CC Aluminium 30.9mm diameter 5mm setback |
Seat clamp | MERIDA EXPERT |
Saddle | MERIDA EXPERT TK V-mount |
Rims | MERIDA COMP TK 20mm inner width 17mm height Aluminium |
Pedals | VP VPE-891 |
Rear hub | Shimano TX505 135x9mm width rear hub 32 spoke holes Centerlock QR axle |
Front hub | Shimano TX505 100x9mm width front hub 32 spoke holes Centerlock QR axle |
Headset | MERIDA M2340 |
Stem | MERIDA EXPERT CC Aluminium 31.8mm diameter 5° stem angle XXS/XS/S 80 mm, M/L 90 mm, XL 100 mm |
Brakes | Hydraulic disc brakes |
Grips | MERIDA EXPERT EC |
Rear derailleurs | Shimano XT T8000 Shadow SGS |
Front derailleurs | Shimano Deore |
Crankset | FSA Alpha Drive 48-36-26 teeth 170 mm-XXS/XS/S, 175 mm-M/XL |
Chain | KMC X10 |
Rear brakes | Shimano MT-400 2 piston Shimano RT10 160 mm rotor |
Front brakes | Shimano MT-400 2 piston Shimano RT10 160 mm rotor |
Brake levers | Shimano MT-200 |
Bottom bracket | FSA TH-7420ST Cartridge Bearing |
Fork | SR Suntour NX1 Coil 63mm suspension travel Remote Lockout 700x50C max. wheelsize |
Gears | 3 x 10 |
Frame | CROSSWAY TFS III Aluminium 700x50C max. wheelsize 135x9mm axle standard BSA bottom bracket standard |
Wheel size | 28 " |
Frame material | Aluminium |
