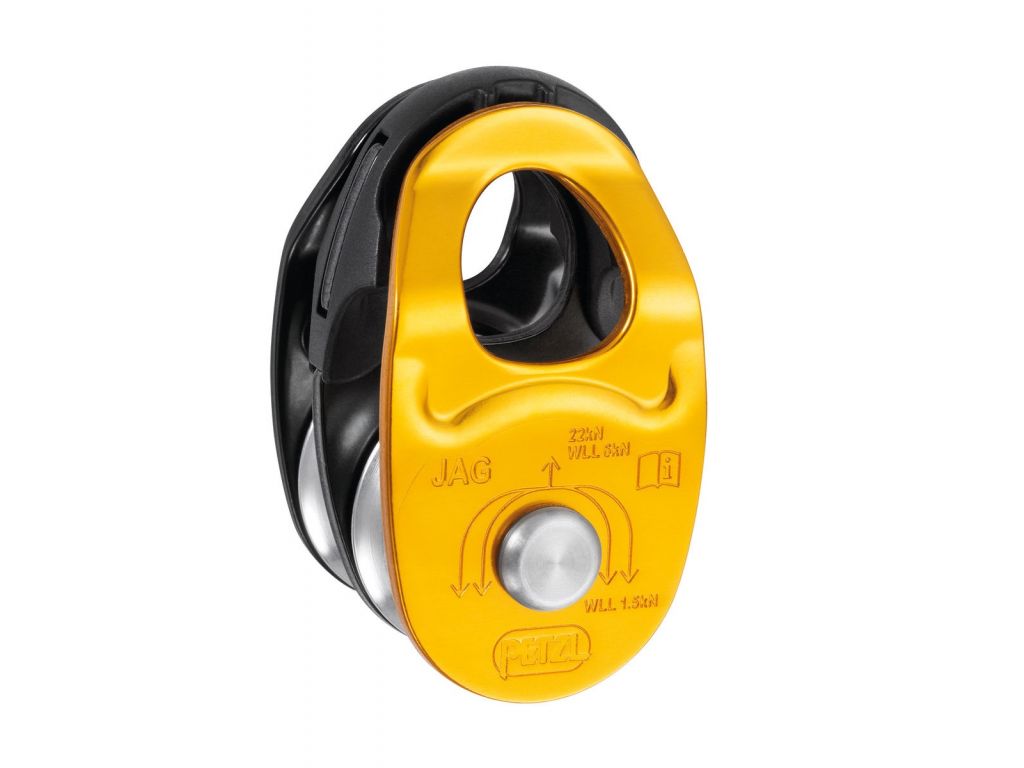

High-efficiency double pulley
Double pulley designed for use with the JAG TRAXION double progress capture pulley to make a 4:1 haul system.
Sheaves mounted on sealed ball bearings for excellent efficiency
Specifications
Weight: 120 g
Certification(s): CE EN 12278, NFPA 1983 Technical Use
Material(s): aluminum, nylon
Min. rope diameter: 8 mm
Max. rope diameter: 11 mm
Sheave type: sealed ball bearings
Sheave diameter: 25 mm
Working load: 2 × 1,5 kN × 2 = 6 kN
Breaking strength: 2 × 4 kN × 2 = 16 kN
Efficiency: 91 %
| Specification | |
|---|---|
| Sheaves | One; 25 mm |
| Rope diameter | 8 - 11 mm |
| Efficiency | 91 % |
| Max. working load | 2 × 1,5 kN × 2 = 6 kN |
| Sheave type | Bearings |
| Sheave material | Aluminium |
