RockShox equipped aluminium 29er hardtail featuring our more comfort-focus geometry, double chainset drivetrain and reliable hydraulic disc brakes. The perfect bike for off-road and urban jungle adventures.
Should you prefer the slightly more minimalist approach of a double chainring setup over a triple while still looking for a broad gear range, then the BIG.NINE 60 (2x) might be the right one for you. It combines a double butted aluminium frame with a more comfort-focused geometry providing you with the perfect hardtail for long off-road outings and fast blasts through the urban jungle. A 100 mm suspension fork from RockShox and hydraulic disc brakes improve comfort and control even further.
Mountain biking is one of the most varied cycling disciplines and probably the most demanding when it comes to equipment. While full suspension bikes offer amazing riding characteristics, the classic hardtail remains one of the purest tools for the job. Our 29er wheel equipped BIG.NINE range comes in carbon and aluminium and features multiple geometry options. The carbon and LITE framed BIG.NINE, with its racing geometry, is an ideal companion on XC and marathon race tracks whilst the more relaxed geometry of the BIG.NINE TFS and SPEED offers a more comfortable, upright riding position. Our classic hardtails are the backbone of our range and showcase the enormous wealth of experience and knowledge we could gain in almost half a century of bike production and manufacturing. The BIG.NINE range symbolises the symbiosis between modern frame technology, attention to detail and craftsmanship 'Made in Taiwan'.
Double butted aluminium frame with 29er wheels
Less aggressive and more upright geometry for maximum control and comfort
RockShox Judy 100 mm travel suspension fork with lockout
Shimano 9-speed drivetrain with double chainring setup
Hydraulic disc brakes
Internal cable routing
Availability Everything found in the catalog is available in our stores and warehouses | |||||
---|---|---|---|---|---|
Color: | Frame size: | Price: | Location: | Barcode: | |

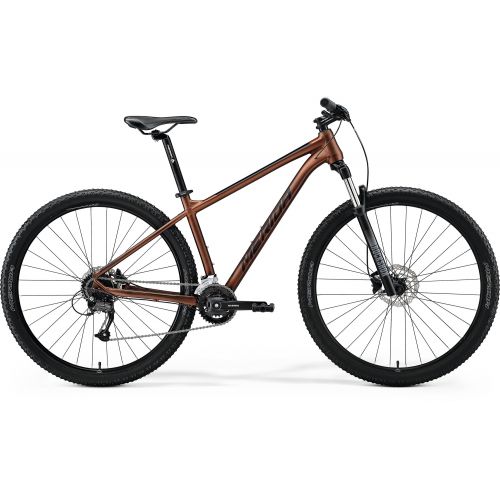

Brown / Black | 14.5" / S | 869.00 EUR | V N |
4710949831929
|
Add to cart |

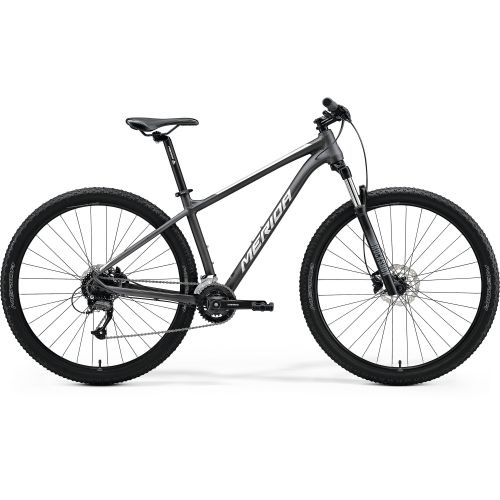

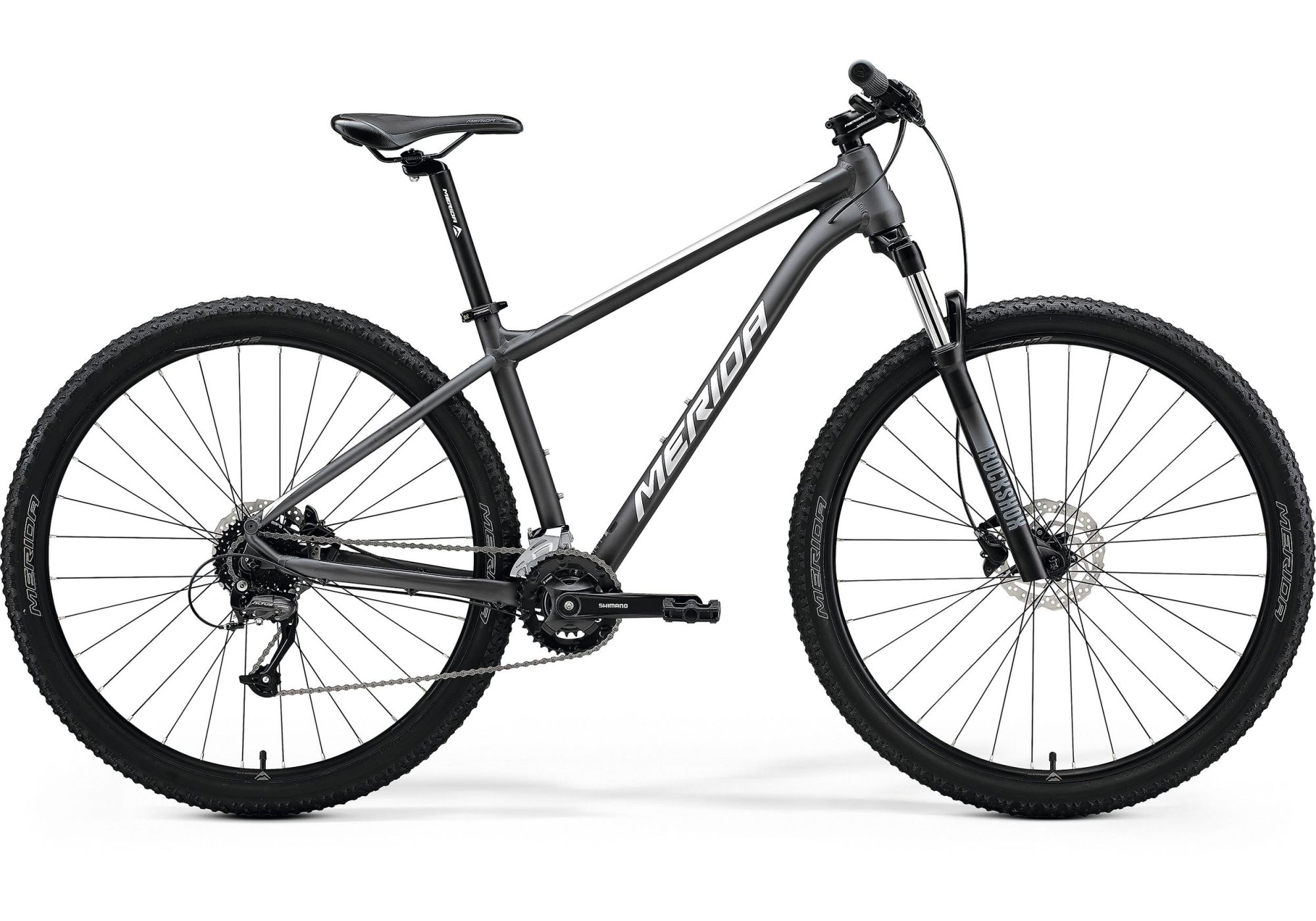

Grey / Silver | 14.5" / S | 869.00 EUR | L N |
4710949832025
|
Add to cart |

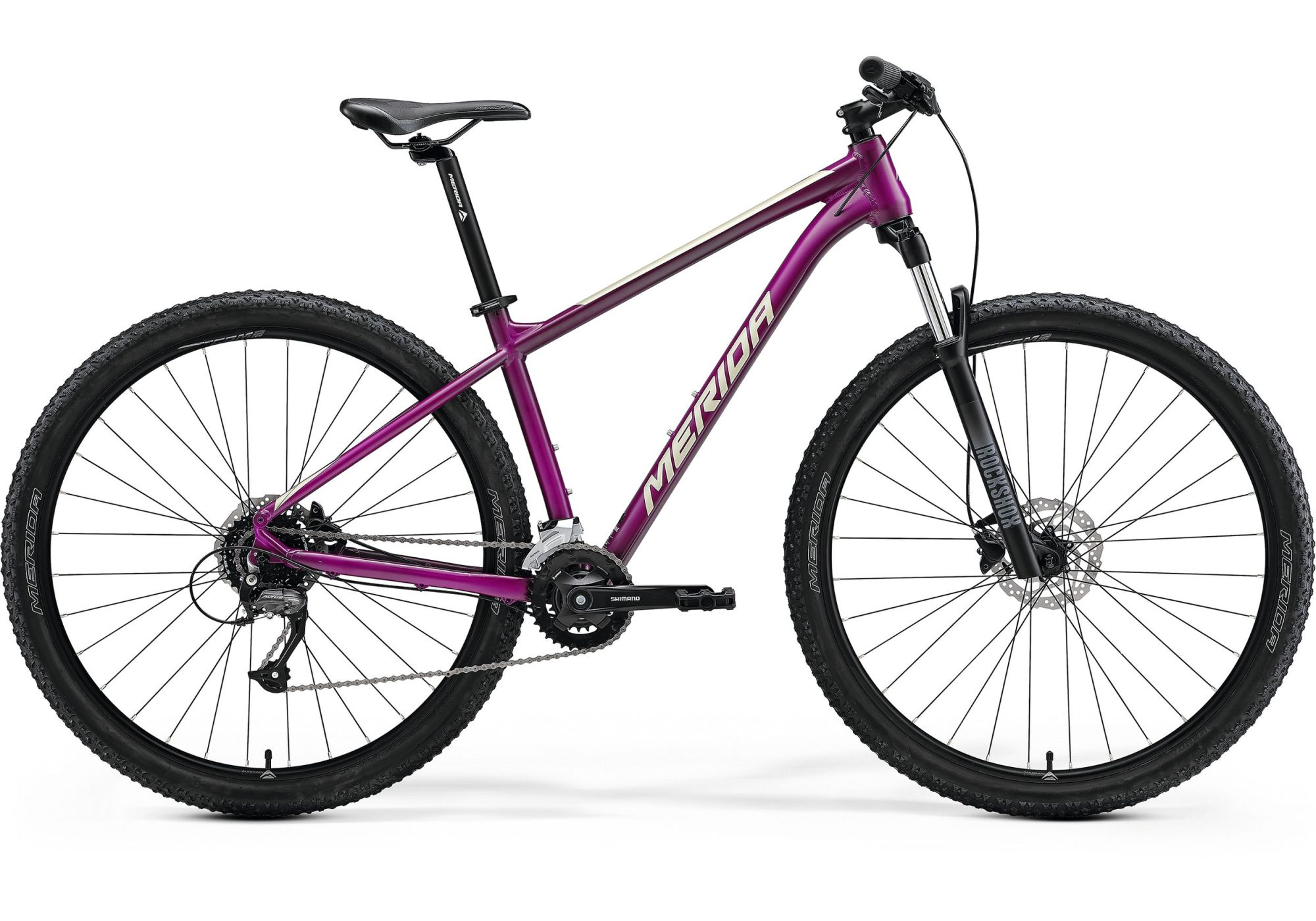

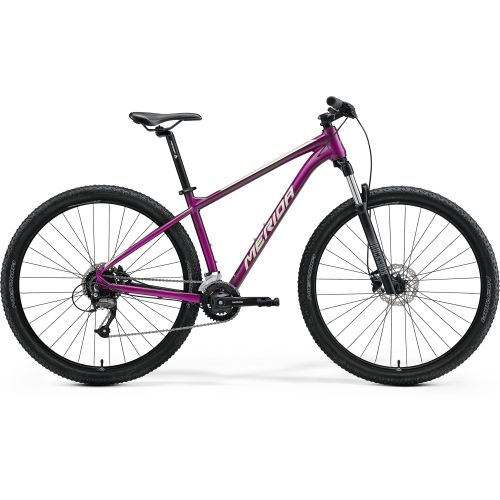

Violet | 14.5" / S | 869.00 EUR | V L N |
4710949831899
|
Add to cart |
Brown / Black | 17" / M | 869.00 EUR | L N |
4710949831912
|
Add to cart |
Grey / Silver | 17" / M | 869.00 EUR | V L N |
4710949832018
|
Add to cart |
Brown / Black | 18.5" / L | 869.00 EUR | V L N |
4710949831905
|
Add to cart |
Grey / Silver | 18.5" / L | 869.00 EUR | V L N |
4710949832001
|
Add to cart |
Brown / Black | 20" / XL | 869.00 EUR | K28 V L N |
4710949831936
|
Add to cart |
Grey / Silver | 20" / XL | 869.00 EUR | V L N |
4710949832032
|
Add to cart |
Brown / Black | 22" / XXL | 869.00 EUR | K28 V L N |
4710949831943
|
Add to cart |
Grey / Silver | 22" / XXL | 869.00 EUR | K28 V L N |
4710949832049
|
Add to cart |
Specification | |
---|---|
Stem | MERIDA CC Aluminium 31.8mm diameter 6° stem angle 70 mm-S, 80 mm-M, 90 mm-L, 100 mm-XL, 110 mm-XXL |
Permitted max. weight | 135 kg |
Suspension | Front suspension |
Cassette | Shimano CS-HG200 11-32 teeth 9 speed |
Tyres | MERIDA K1080 29x2.2" wire |
Spokes | Black steel |
Shift levers | Shimano ST-EF505-2L / Shimano ST-EF505 |
Seatpost | MERIDA CC Aluminium 30.9mm diameter 15mm setback |
Seat clamp | MERIDA COMP QR |
Saddle | MERIDA SPORT COMFORT |
Rims | MERIDA CC 17mm inner width Aluminium |
Pedals | VP VPE-891 |
Rear hub | Shimano TX505 135x9mm width rear hub 32 spoke holes Centerlock |
Front hub | Shimano TX505 100x9mm width front hub 32 spoke holes Centerlock |
Headset | MERIDA M2345 |
Brakes | Hydraulic disc brakes |
Handlebars | MERIDA CC Aluminium 690mm width 15mm rise |
Grips | MERIDA EC |
Rear derailleurs | Shimano RD-M370 |
Front derailleurs | Shimano FD-M2020-TS [2S] |
Crankset | Shimano MT101-2 36-22 teeth 170 mm-S, 175 mm-M/XXL |
Chain | KMC M99 |
Rear brakes | Power DS100 2 piston hydraulic disc brake Shimano RT10 160 mm rotor |
Front brakes | Power DS100 2 piston hydraulic disc brake Shimano RT10 160 mm rotor |
Bottom bracket | Shimano BB-UN100 |
Fork | Rock Shox Judy TK Coil 100mm suspension travel Lockout 46mm fork offset 29x2.25" max. wheelsize |
Gears | 2 x 9 |
Frame | BIG.NINE TFS III Aluminum 29x2.25" max. wheelsize 135x9mm axle standard BSA bottom bracket standard |
Wheel size | 29 " |
Frame material | Aluminium |
Average weight | 13.8 kg |
Catalog numbers | A62211A01530, A62211A00809, A62211A01979, A62211A01531, A62211A00810, A62211A01532, A62211A00811, A62211A01533, A62211A00812, A62211A01534, A62211A00813 |
