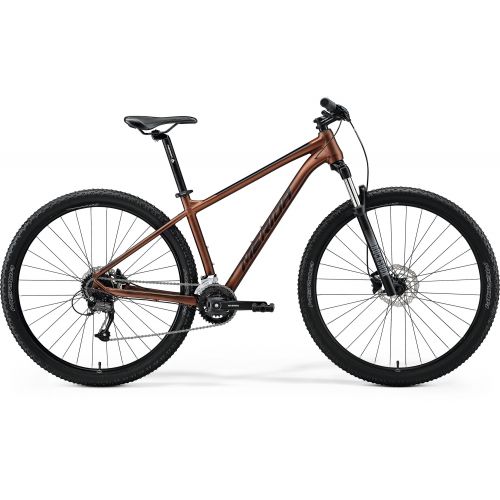

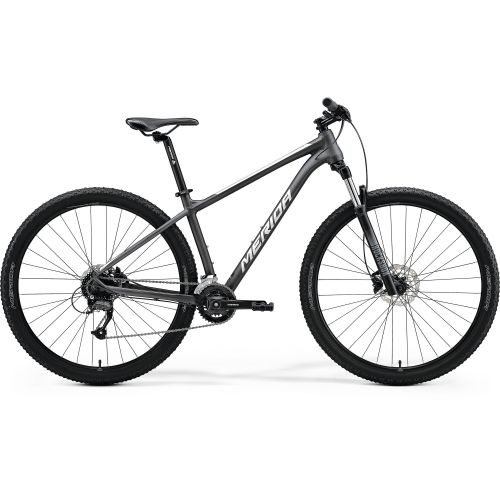

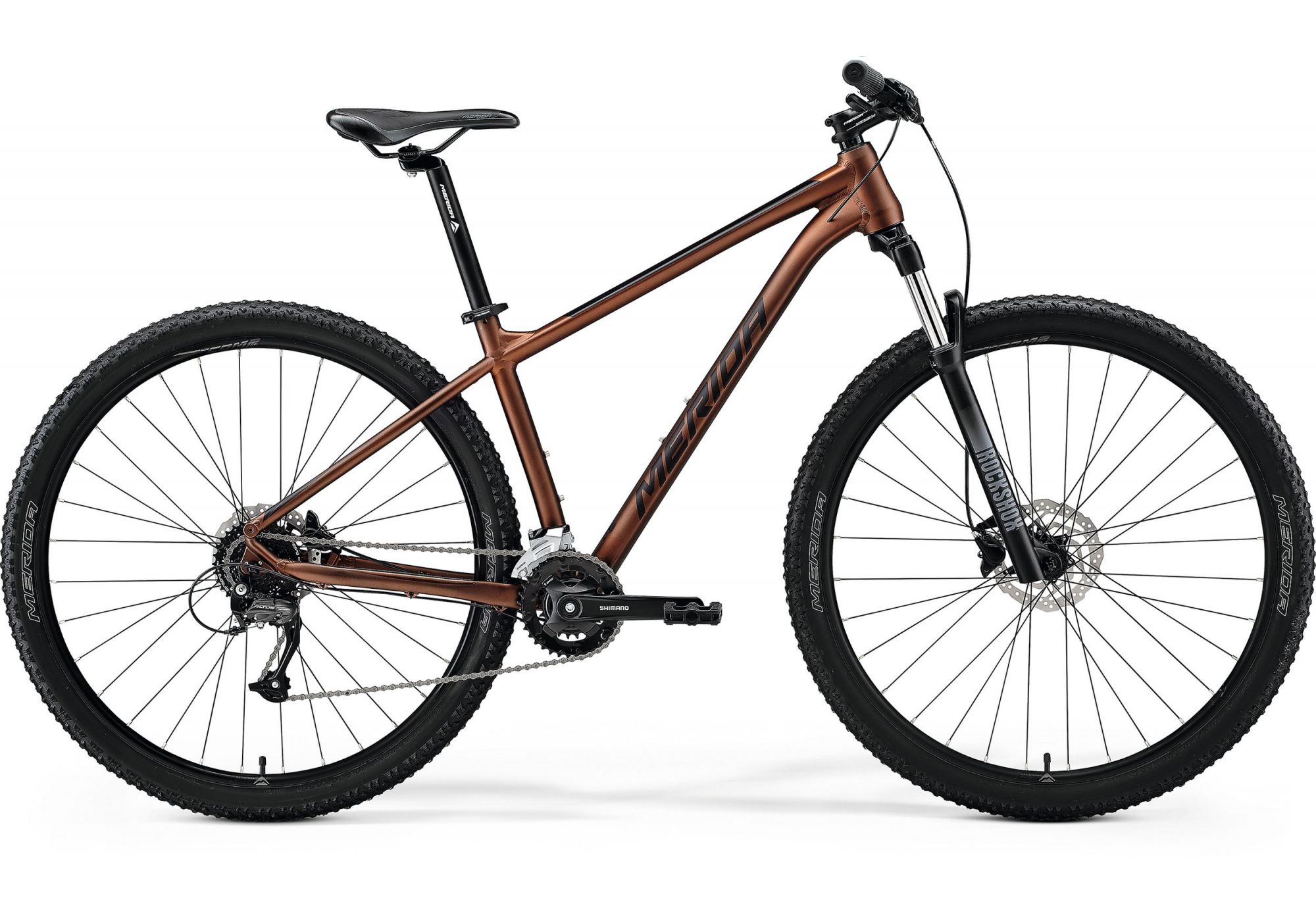

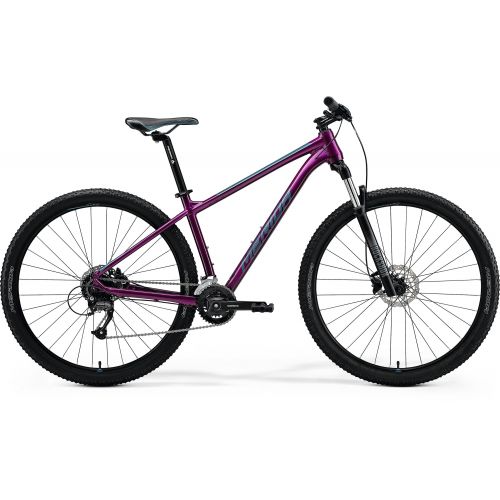

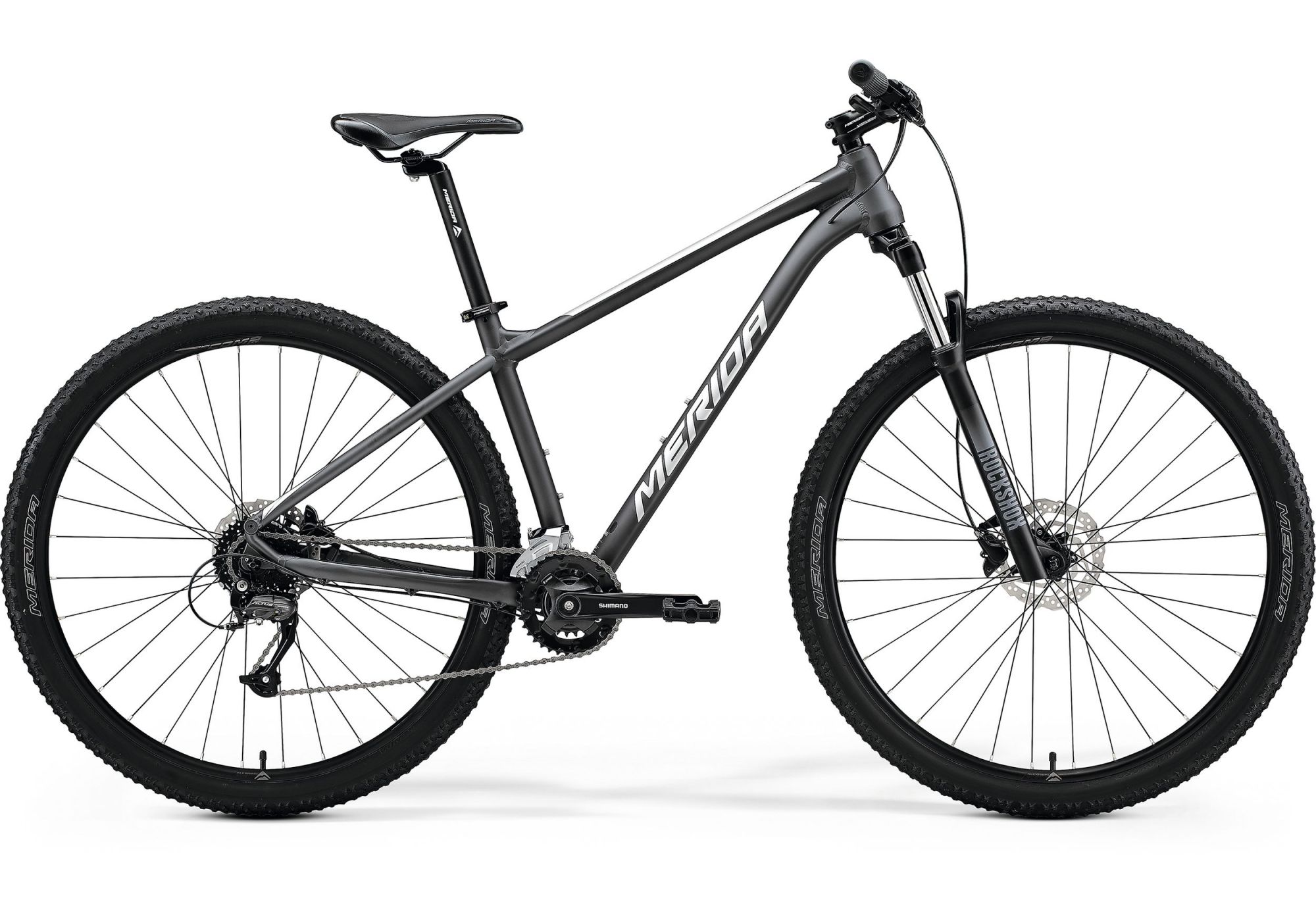

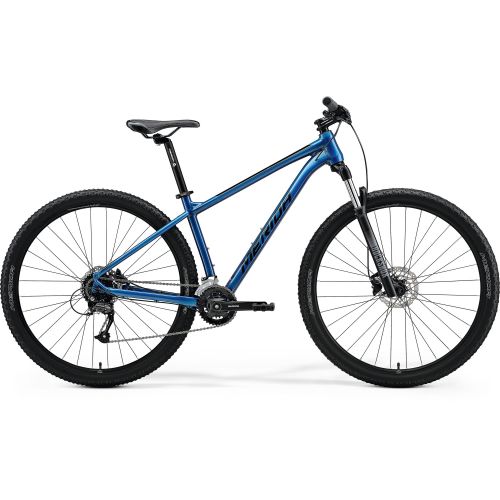

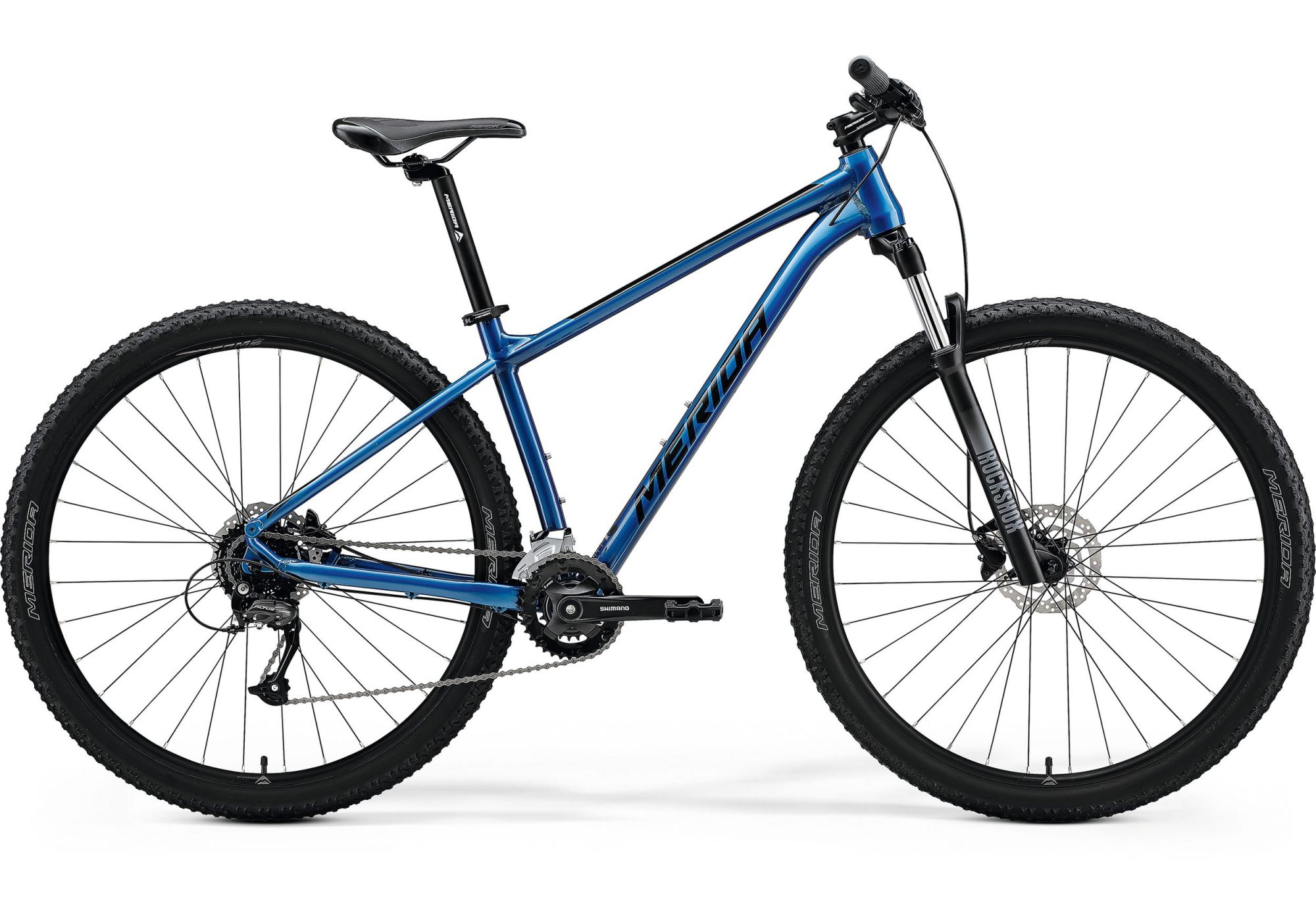

Mountain bike Big Nine 60-2X

(0 reviews)
Merida

Merida

piece

13.93 kg

  • Colors:
From 671.20 up to 839.00
Add to cart
MULTIPLE FRAME OPTIONS
Besides offering the BIG.NINE in a full carbon version, we also have BIG.NINE LITE and BIG.NINE/ SEVEN TFS aluminium frames in our range. While the LITE features the same race-proven geometry as the carbon models, the TFS bikes offer a more relaxed geometry, through a shorter top tube and a higher head tube, resulting in a more upright riding position and enhanced trail visibility. The TFS frames feature internal cable routing (except the BIG.NINE/BIG.SEVEN 15), smooth welding, tapered head tube, inboard disc mounts, and mounts for fenders, rear rack and kickstand.

THIS IS WHAT WE DO
Our classic hardtails are the backbone of our range and showcase the enormous wealth of experience and knowledge we were able to gain in 48 years of bike production and manufacturing. The BIG.NINE and BIG.SEVEN range symbolises the symbiosis between modern frame technology, attention to detail and craftsmanship 'Made in Taiwan'.

This inventory can also be rented
Availability Everything found in the catalog is available in our stores and warehouses
Color: Frame size: Price: Location: Barcode: Information
Blue / Black 14.5" / S 839.00 EUR V 6110895850001 Add to cart
Blue / Black 17" / M 839.00 EUR K28 L 6110895861007 Add to cart
Blue / Black 18.5" / L 839.00 EUR K28 V N 6110895872003 Add to cart
Brown / Black 18.5" / L 839.00 EUR V L N 6110895979009 Add to cart
Grey / Silver 18.5" / L 839.00 EUR V L N 6110895827003 Add to cart
Blue / Black 20" / XL 671.20 EUR 839.00 EUR L 1000366228000 Vizuāls defekts Add to cart
Blue / Black 20" / XL 839.00 EUR K28 V L N 6110895883009 Add to cart
Brown / Black 20" / XL 839.00 EUR N 6110895980005 Add to cart
Brown / Black 20" / XL 671.20 EUR 839.00 EUR L 1000378793008 Vizuāls defekts Add to cart
Grey / Silver 20" / XL 839.00 EUR N 6110895838009 Add to cart
Blue / Black 22" / XXL 839.00 EUR V L 6110895894005 Add to cart
Brown / Black 22" / XXL 839.00 EUR V L 6110895991001 Add to cart
Grey / Silver 22" / XXL 839.00 EUR L 6110895849005 Add to cart
Specification
Handlebars MERIDA CC
Aluminium
690mm width
15mm rise
Permitted max. weight 135 kg
Cassette Shimano CS-HG200
11-32 teeth
9 speed
Tyres MERIDA K1080
29x2.2"
wire
Spokes Black steel
Shift levers Shimano ST-EF505-2L / Shimano ST-EF505
Seatpost MERIDA CC
Aluminium
30.9mm diameter
15mm setback
Seat clamp MERIDA COMP QR
Rims MERIDA CC
17mm inner width
Aluminium
Pedals VP VPE-891
Rear hub Shimano TX505
135x9mm width rear hub
32 spoke holes
Centerlock
Front hub Shimano TX505
100x9mm width front hub
32 spoke holes
Centerlock
Headset MERIDA M2345
Stem MERIDA CC
Aluminium
31.8mm diameter
6° stem angle
70 mm-S, 80 mm-M, 90 mm-L, 100 mm-XL, 110 mm-XXL
Brakes Hydraulic disc brakes
Grips MERIDA EC
Rear derailleurs Shimano RD-M370
Front derailleurs Shimano FD-M2020-TS [2s]
Crankset Shimano MT101-2
36-22 teeth
170 mm-S, 175 mm-M/XXL
Chain KMC M99
Rear brakes Shimano ST-EF505
BR-MT200 brake caliper
Shimano RT10
160 mm rotor
Front brakes Shimano ST-EF505
BR-MT200 brake caliper
Shimano RT10
160 mm rotor
Bottom bracket Shimano BB-UN100
Shimano FD-M2020-TS [2s]
Fork Rock Shox Judy TK
Coil
100mm suspension travel Lockout
46mm fork offset
29x2.25" max. wheelsize
Gears 9 x 2
Frame BIG.NINE TFS III
Aluminum
29x2.25" max. wheelsize
135x9mm axle standard
BSA bottom bracket standard
Wheel size 29 "
Frame material Aluminium
Weight 13.93 kg
Catalog numbers 6110895850, 6110895861, 6110895872, 6110895979, 6110895827, 6110895883, 6110895980, 6110895838, 6110895894, 6110895991, 6110895849
