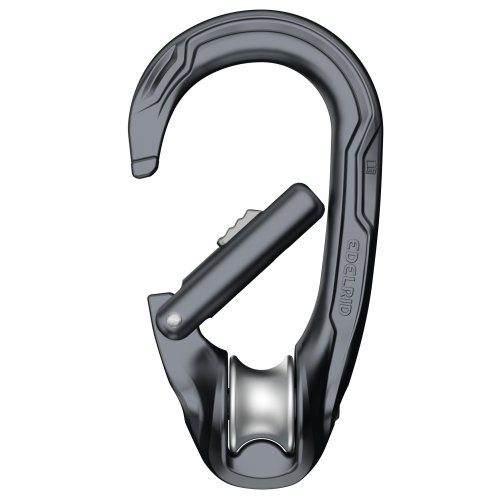

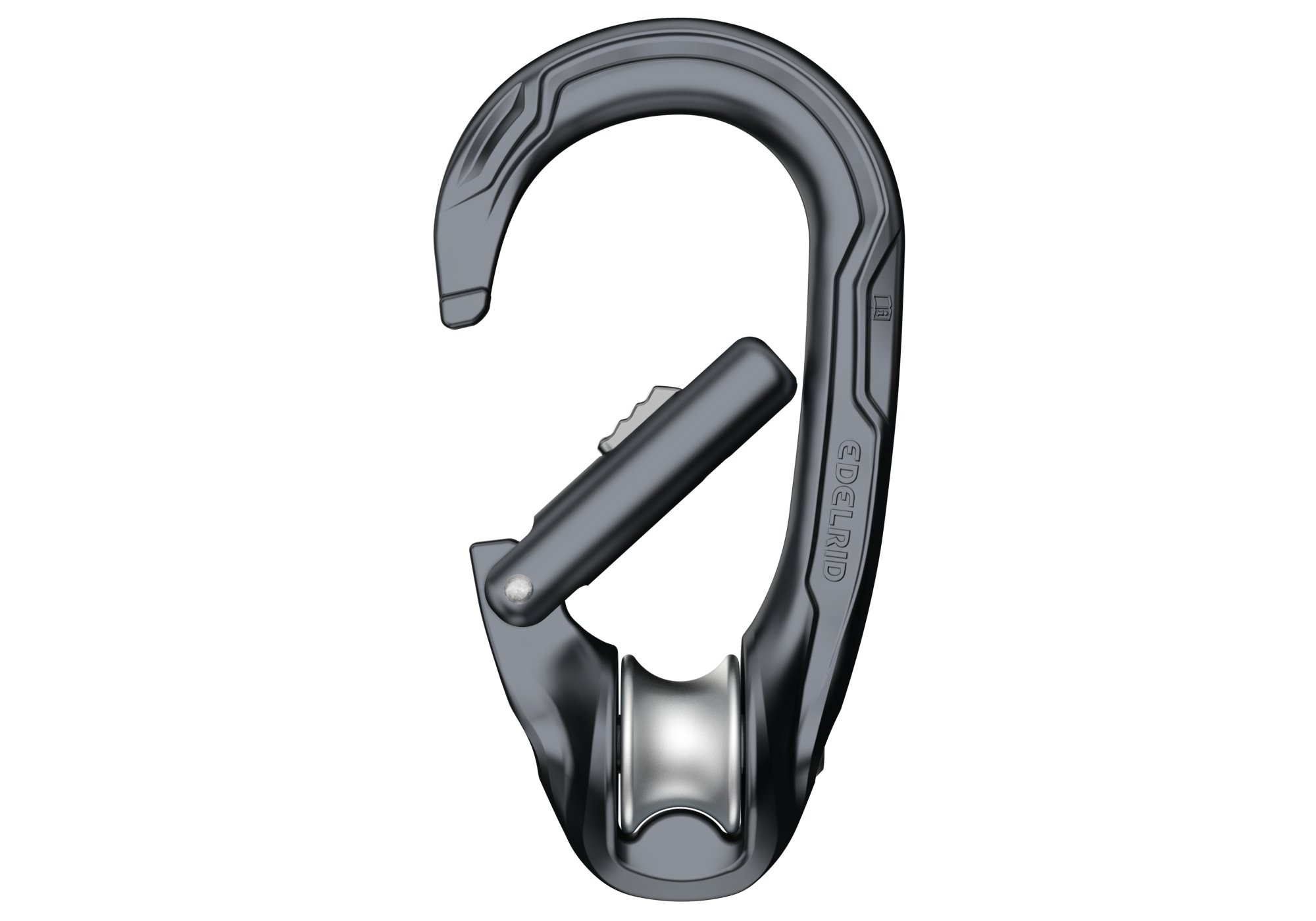

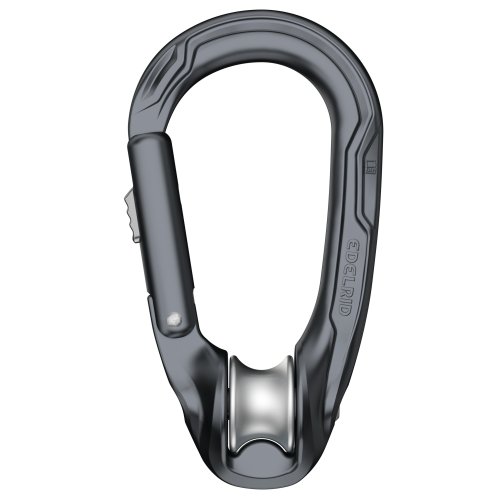

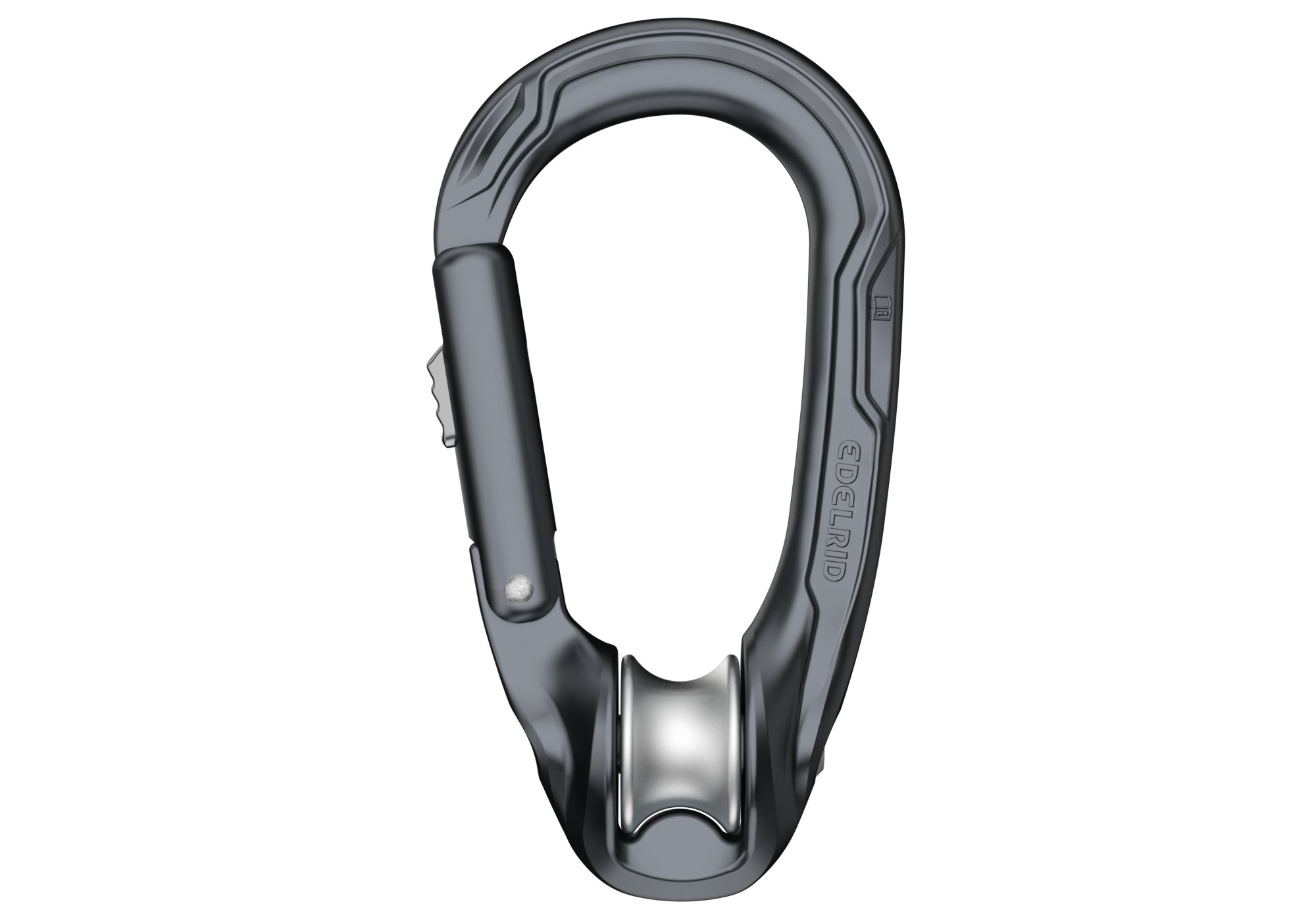

Pulley / carabiner Maxiom Rig Slider

Large slider carabiner with an integrated rope pulley

Ideal for creating efficient block and tackle systems or directional anchors in the fields of work safety and technical rescue: The MAXIOM RIG combines a large carabiner with a ball-bearing-mounted pulley. The outstanding efficacy of 94% ensures minimal friction and reliable function, even under load. The working load limit (WLL) of 400 kg makes the carabiner a robust workhorse. Thanks to its oval design, the MAXIOM RIG offers plenty of room for ropes and devices, which can be clipped on particularly easily thanks to the large gate opening with a keylock nose. The compact, automatic slider closure makes handling particularly simple yet also safe.

Keylock closure mechanism for optimum handling when clipping and unclipping
Pulley maintains its function even under load
High working load limit (WLL) of 400 kg
Rope pulley efficacy: 94%

Width: 67 mm
Length: 121 mm

Gate opening: 23 mm
Fmax. major axis: 20 kN
Fmax. minor axis: 7 kN
Fmax. open: 7 kN

Certification: EN 12275
Certification: EN 362
Material: Aluminium
Closure: Slider
Carabiner shape: Pear
