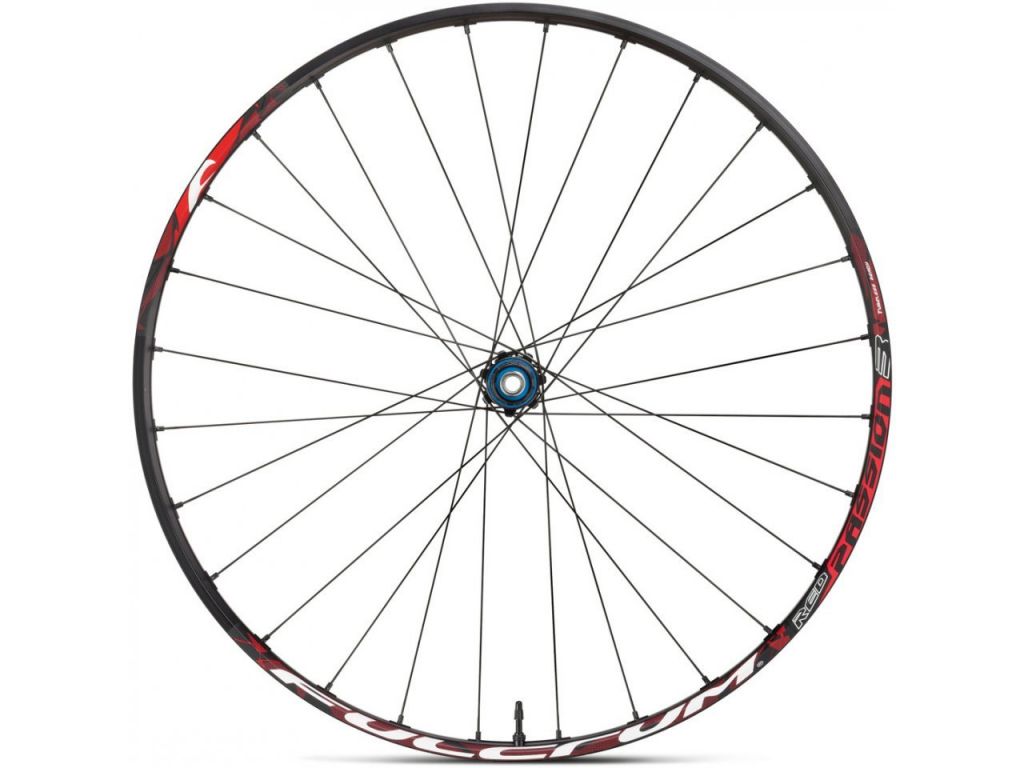

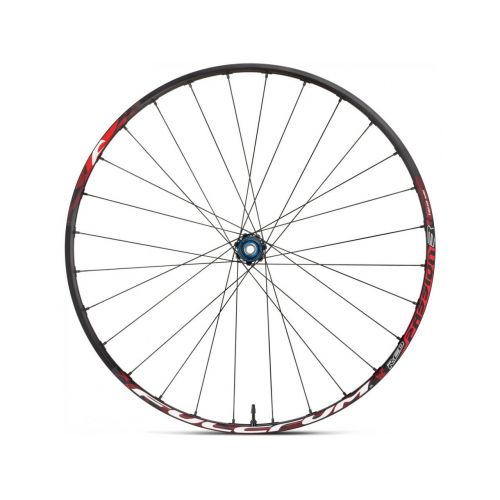

Wheelset Red Passion 3 29 TR AFS Boost

Application: Cross Country, Marathon
Wheel Size: 29"
Tyre Type: clincher
Number of Spokes: 28
Brake Type: disc Center Lock (AFS Axle System™)
Tubeless System: Tubeless Ready
Freehub Body Compatibility: 9-/10-speed Shimano/SRAM; 11-speed Shimano MTB, 11-speed SRAM NX (PG-1130)
Note: To convert to 11-/12-speed SRAM XD, an XD freehub body is required.

Technical Information - Rim:
Dimensions (ETRTO): 21-622
Inner Width: 21 mm
Outer Width: 24 mm
Depth: 16 mm
Valve Hole Diameter: Presta (6.5 mm)
Rim Material: aluminium

Technical Information - Front Hub:
Over Locknut Dimension: 15 x 110 mm (Boost), 15 mm thru-axle
Bearings: cartridge
Body Material: aluminium

Technical Information - Rear Hub:
Over Locknut Dimension: 12 x 148 mm (Boost), 12 mm thru-axle or 10 x 135 mm quick release
Bearings: cartridge
Body Material: aluminium

Technical Information - Lacing:
Front Lacing Pattern: 2-cross
Rear Lacing Pattern: 2-cross
Spoke Type: round / straight pull / 1.6
Spoke Material: stainless steel
Nipple Material: aluminium

Approved For:
Weight Limit: 109 kg total weight*

* When weighing more than 82 kg (180 lb) shorter inspection intervals are recommended.

Factory Numbers:
29" set (front 15x110/Boost+rear 12x148/Boost): RN39-17DFRH52BAFS

Contents:
- 1 x Fulcrum Red Passion 3 wheelset (front & rear)
- 2 x tubeless valves
- 1 x Fulcrum rear quick release(not incl. with front Boost/rear Boost)

Specification
Wheel size value_lv "
By product Sets
Braking system Disc brakes
Rim 21-622 (ETRTO)

Presta (6.5 mm) Valve
Rim material aluminium
Rim height 16 mm
Rims width Inner Width: 21 mm
Outer Width: 24 mm
Brakes disc Center Lock (AFS Axle System™)
Spokes: front 28
Spokes: rear 28
Spokes material stainless steel
Spokes: Profile technology round / straight pull / 1.6
Nipples aluminium
Front hub 15 x 110 mm (Boost), 15 mm thru-axle
Bearings: cartridge
Body Material: aluminium
Rear hub 12 x 148 mm (Boost), 12 mm thru-axle or 10 x 135 mm quick release
Bearings: cartridge
Body Material: aluminium
Other Weight Limit: 109 kg total weight
